x402 Concordium-aware Facilitator (XCF)

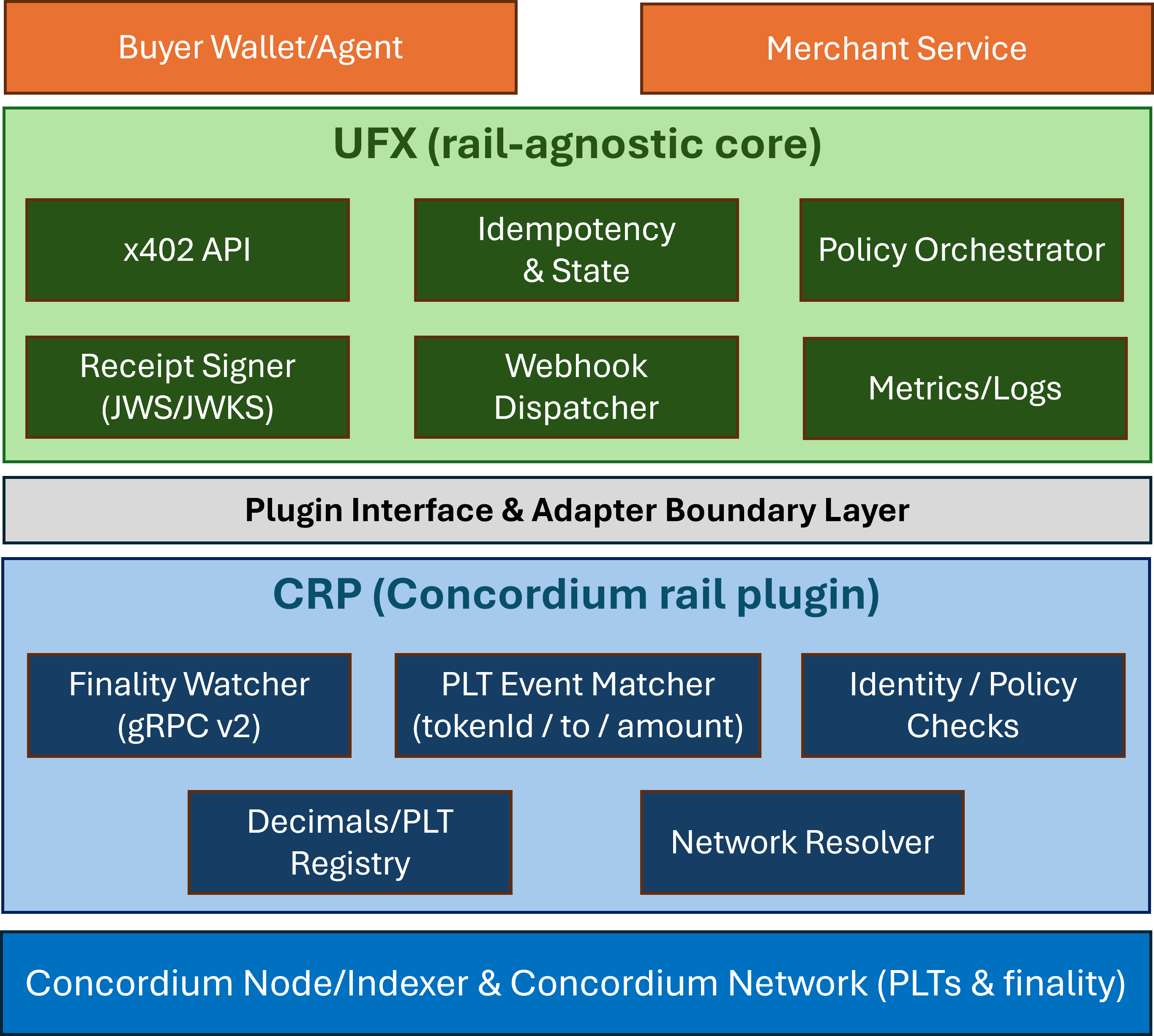

🧱 Architecture (layered)

XCF consists of two layers:

• UFX (Universal Facilitator for x402) – rail-agnostic core that exposes the x402-friendly API, enforces idempotency/expiry, signs verifiable receipts (JWS), and emits webhooks/metrics.
• CRP (Concordium Rail Plugin) – rail-specific adapter that talks to a Concordium gRPC v2 node, reads finalized blocks, parses PLT (protocol-level token) transfers, and matches exact payments.

PoC scope: No custody; no on-chain contracts. Finality-only, exact amount matching, signed receipts, and minimal merchant integration (webhook + polling).

✨ Demo outcome

A payer scans a QR (or taps NFC), sends the exact PLT amount to the pay_to address, and the terminal shows a green check as soon as XCF issues a signed receipt.

📐 Hard guarantees

• Finality-only: match only transactions in last-finalized blocks (no mempool/pending).
• Exact tuple match: { tokenId, to, amountMinor }, where amountMinor = toMinorUnits(amount, decimals); no slippage.
• Idempotency: same nonce + identical payload ⇒ same outcome; same nonce + different payload ⇒ 422.
• Verifiable receipts: compact JWS with kid; JWKS published at /.well-known/jwks.json.
• Auth everywhere: all facilitator endpoints require auth; CORS allow-list enforced.

🧭 Milestones (status)

M1 – UFX API skeleton

• Node/TypeScript + Fastify service
• Basic health endpoints:
  • GET /healthz
  • GET /v1/crp/health

M2 – CRP wiring (gRPC v2)

• Concordium testnet gRPC wiring via src/crp/grpc.ts
• Consensus & account reads:
  • GET /v1/crp/consensus
  • GET /v1/crp/account/:address
• Basic CRP payments search stub
• Local smoke tests:
  • npm run smoke:crp
  • npm run smoke:plt (initial stub)

M3 – PLT stream ingest & CRP payments search

• Database migration for PLT stream ingest:
  • db/migrations/002_m3_stream.sql
• PLT decimals & parsing:
  • src/crp/decimals-registry.ts
  • src/crp/parser.ts
• Stream worker & stream control:
  • src/crp/stream.ts
  • src/crp/stream-worker.ts
• Postgres stores:
  • src/store/plt.pg.ts – PLT events
  • src/store/match.pg.ts – matched payments
• CRP routes:
  • GET /v1/crp/payments/search
    • Filters: merchantId, status, limit (and default unfiltered listing)
• Demo tooling:
  • scripts/migrate-002-m3-stream.js – apply M3 migration
  • scripts/debug-*.js – consensus, PLT events, seeding demo challenges
  • scripts/smoke-idempotency.sh – create/idempotent/409 conflict flow for JWS receipts

Status: M3 is implemented and merged into main.

M4 – Exact match & webhook for CRP payments

M4 adds two helper routes under /v1/crp for working with PLT-based payment challenges:

• GET /v1/crp/payments/search
  Search challenges/payments by tuple filters (existing route).

• POST /v1/crp/payments/match
  Pure read-only exact tuple match. Validates the full tuple:
  merchantId, nonce, network, asset{type, tokenId, decimals}, amount, payTo.
  Returns either reason: "exact_match" with a single row, or reason: "no_match".

• POST /v1/crp/payments/fulfill
  Uses the same exact-tuple match as /payments/match, but is intended as the gateway “fulfill” entrypoint. On success it can also POST a JSON payload to a merchant-specific webhook.
