AutonomiX Monorepo

Production-ready stack featuring x402 micropayments and ERC‑8004 agent NFTs on Base Sepolia. This repository contains:

• Smart Contracts (smart-contract/) — ERC‑8004 agent NFT contract and scripts
• Backend (backend/) — Express.js API, metadata/images, and x402 (USDC) micropayment protection

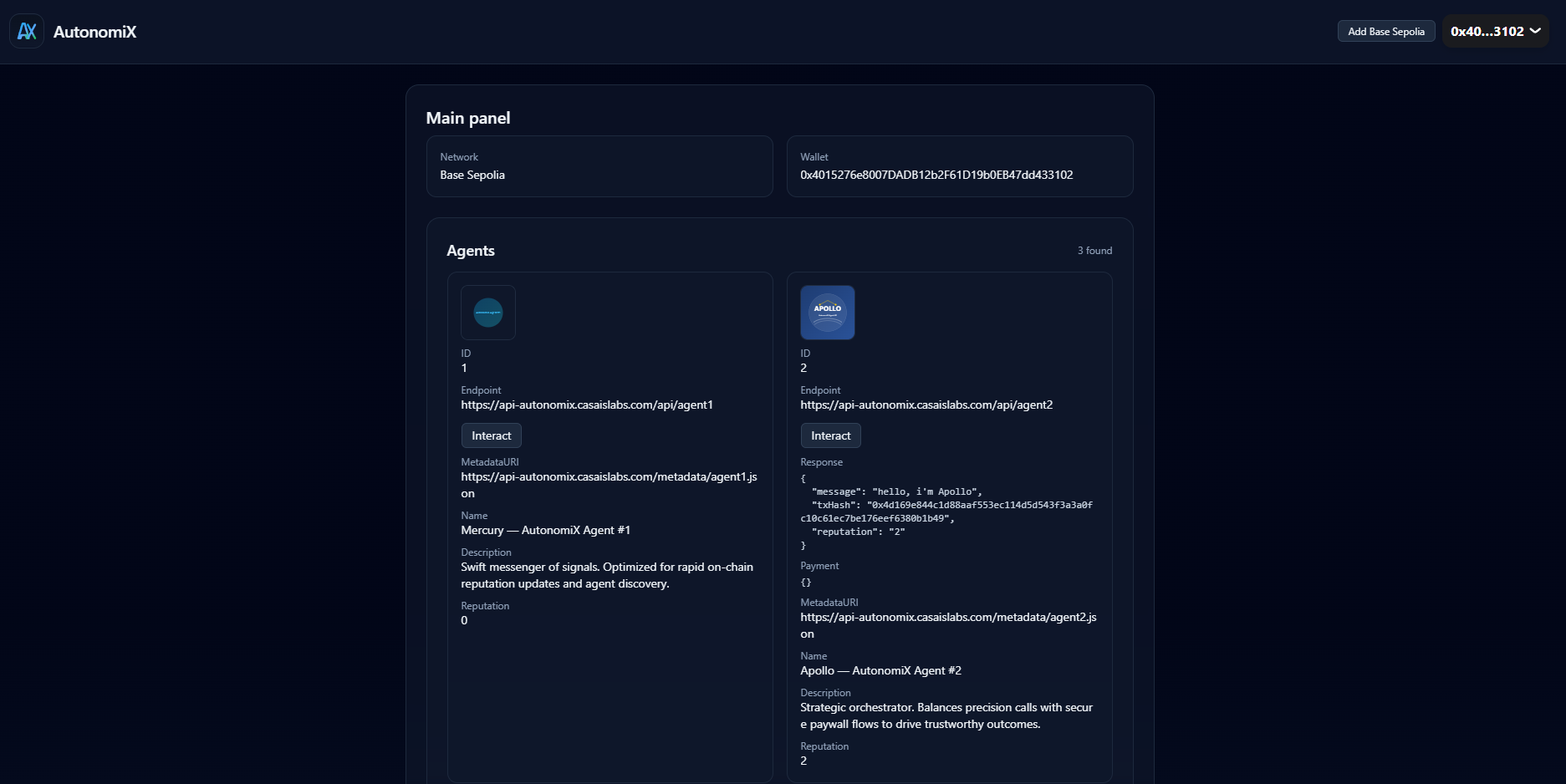

• Frontend (frontend/) — React + TypeScript + Vite UI for browsing and interacting with agents

Table of Contents

• Overview
• Live Links
• Repository Navigation
• Contracts (ERC‑8004)
• Backend (Express.js + x402)
• Frontend (React + Vite)
• Flows
• Environment
• Quick Start
• Deployment (Base Sepolia)
• Verification (Etherscan V2)
• Metadata & Images
• Troubleshooting

Overview

AutonomiX defines agent NFTs that carry off‑chain discovery data (HTTP endpoint, metadata URI) and an on‑chain reputation score. The smart contract implements ERC‑8004; the backend serves metadata and images and can protect agent endpoints with x402 (USDC); the frontend renders agents and reads data from the contract and backend.

Note: This repository is a practical example that demonstrates how to use ERC‑8004 together with x402 micropayments. The intended direction is for agents to perform AI‑driven actions via external APIs (e.g., OpenAI, Claude), publish discovery metadata, and update on‑chain reputation. Sensitive or write endpoints can be paywalled with x402.

Network requirement: Base Sepolia (base-sepolia). All instructions assume this network.

Live Links

• Contract Address: 0x6633006c0825a55aC8dEEB66a2d1C5D1e9283725
  • Explorer: https://sepolia.basescan.org/address/0x6633006c0825a55aC8dEEB66a2d1C5D1e9283725
• Live API: https://api-autonomix.casaislabs.com
• Live Demo (Frontend): https://autonomix.casaislabs.com

Flows

x402‑protected API (GET /api/agent{N})

sequenceDiagram
    participant Client
    participant Backend
    participant Facilitator as x402 Facilitator

    Client->>Backend: GET /api/agent{N}
    Backend-->>Client: 402 Payment Required + challenge
    Client->>Facilitator: Pay USDC, request receipt
    Facilitator-->>Client: X-402-Receipt
    Client->>Backend: GET /api/agent{N} + X-402-Receipt
    Backend-->>Client: 200 OK (agent response)

Public assets with open CORS (/metadata, /images)

sequenceDiagram
    participant Browser
    participant Backend

    Browser->>Backend: GET /metadata/agent1.json
    Backend-->>Browser: 200 OK + Access-Control-Allow-Origin: *
    Browser->>Backend: GET /images/agent2.svg
    Backend-->>Browser: 200 OK + Access-Control-Allow-Origin: *

ERC‑8004 agent discovery

sequenceDiagram
    participant Client
    participant Contract as AutonomiXAgent (ERC‑8004)
    participant Backend

    Client->>Contract: agentMetadataURI(tokenId)
    Contract-->>Client: metadata URI
    Client->>Backend: GET /metadata/agent{ID}.json
    Backend-->>Client: JSON (name, description, image)
    Client->>Contract: reputationOf(tokenId)
    Contract-->>Client: reputation score

Repository Navigation

• Root README (this file)
• Backend README: backend/README.md
• Frontend README: frontend/README.md
• Smart Contracts README: smart-contract/README.md

Contracts (ERC‑8004)

• Contract: smart-contract/contracts/AutonomiXAgent.sol
• Interface: smart-contract/contracts/interfaces/IERC8004.sol
• Minimal reads: agentEndpoint(tokenId), agentMetadataURI(tokenId), reputationOf(tokenId), getAgent(tokenId)
• Minimal writes: registerAgent(to, endpoint, metadataURI), setAgentMetadata(tokenId, endpoint, metadataURI), updateReputation(tokenId, delta)
• Events: AgentRegistered, AgentMetadataUpdated, ReputationUpdated

See details and operational scripts in smart-contract/README.md.

Backend (Express.js + x402)

• Framework: Express.js; entrypoint backend/src/index.ts
• Auto‑registers local agent endpoints from backend/src/routes/endpoint/agent{N}.ts at GET /api/agent{N}
• Serves ERC‑721 metadata at GET /metadata/agent<ID>.json and images at GET /images/agent<ID>.*
• x402 (USDC) micropayment protection via x402-express for selected routes on Base Sepolia
• Uses ethers with RPC_URL, AGENT_ADDRESS, and optional ADMIN_PRIVATE_KEY to read/write on‑chain (e.g., reputation updates)

Full details in backend/README.md.

Frontend (React + Vite)

• React + TypeScript + Vite UI
• Reads agentEndpoint, agentMetadataURI, and reputationOf from the contract; fetches metadata/images from the backend
• Targets Base Sepolia; environment configured via frontend/.env

Full details in frontend/README.md.

Environment

Key environment variables used across packages:

• Smart Contracts: BASE_SEPOLIA_RPC_URL, WALLET_KEY, ETHERSCAN_API_KEY, AUTONOMIX_AGENT_ADDRESS, AGENT_ENDPOINT_URL, AGENT_METADATA_URI
• Backend: PORT, FRONTEND_ORIGIN, RPC_URL, AGENT_ADDRESS, ADMIN_PRIVATE_KEY, X402_RECEIVER_ADDRESS, X402_NETWORK=base-sepolia, X402_PRICE_USD, X402_FACILITATOR_URL, X402_PROTECTED_PATHS
• Frontend: VITE_NETWORK=base-sepolia, VITE_RPC_URL, VITE_CONTRACT_ADDRESS, VITE_BACKEND_URL

Quick Start

1. Contracts

• cd smart-contract && npm ci && npx hardhat compile

1. Backend

• cd backend && npm ci && npm run dev
• API at http://localhost:3000 (configurable via PORT)

1. Frontend

• cd frontend && npm ci && npm run dev
• UI at http://localhost:5173 (configurable by Vite)

Deployment (Base Sepolia)

• Deploy contract (example Ignition module):
  • npx hardhat ignition deploy --network base-sepolia smart-contract/ignition/modules/AutonomiXAgent.ts
• Set AUTONOMIX_AGENT_ADDRESS (contracts) and AGENT_ADDRESS (backend) to the deployed address.
• Register new agents via smart-contract/scripts/register-agent.ts using .env values (AGENT_ENDPOINT_URL, AGENT_METADATA_URI).

Verification (Etherscan V2)

• Use smart-contract/scripts/verify-etherscan-v2.ts with ETHERSCAN_API_KEY and the deployed address on Base Sepolia.

Metadata & Images

• Backend serves metadata under /metadata/agent<ID>.json and images under /images/agent<ID>.*
• Frontend consumes these resources to render agent names, descriptions, and visuals; metadata may reference http(s) or ipfs:// URIs

Troubleshooting

• Ensure all .env files are populated (RPC, addresses, keys)
• Confirm Base Sepolia network settings (base-sepolia) across contracts, backend, and frontend
• For x402 issues, verify X402_RECEIVER_ADDRESS and X402_NETWORK=base-sepolia
