Implementing x402 with 1Shot and FastAPI

x402 is a payment standard proposed by Coinbase that enables API services to charge for access by piggybacking on top of the existing HTTP 402 status code. Specifically, x402 enables API customers, particularly AI agents, to pay for and gain access to premium API resources by cryptographically signing (see EIP-712) time-bound value transfers that are executed onchain by a fascilitator (e.g. 1Shot API).

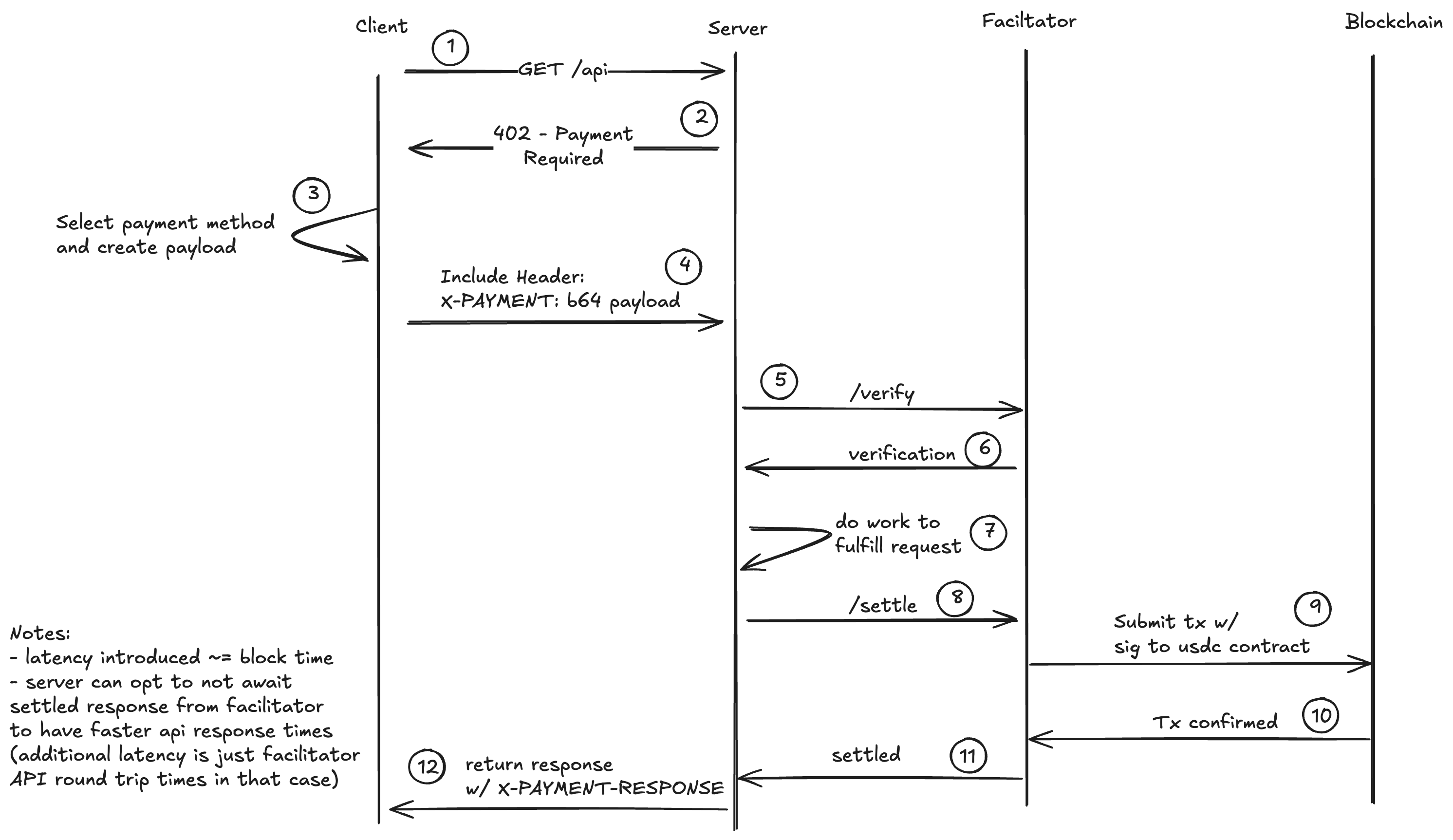

There are 4 primary actors in the x402 scheme:

1. The Client/Consumer: This is the entity attempting to read or utilize an API with valuable resources
2. The Resource Server: The Resource Server is the actor who is serving paid content in exchange for money
3. A Facilitator: This is a logical role which could also be filled by the same entity running the API resource server, but could also the a dedicated 3rd party. The purpose of the facilitator is to verify X-Payment headers are valid x402 signature payloads and relay these signed payments to the target blockchain network. 1Shot API makes it trivial to build your own facilitator or integrate fascilitator functionality into your server.
4. The Blockchain: This is the settlement network where the digital asset is deployed that is being accepted as payment, like USDC which implements EIP-3009.

FastAPI and Pydantic

This demo repo focuses on FastAPI as the web server framework and leverages Pydantic for data validation of the x402 payload specifications.

Specifically, we show how FastAPI route dependencies can be used to implement x402 payments while being minimally invasive to your existing codebase.

Run the x402 Demo

1. Log into 1Shot API

Log into 1Shot API, create an API key and secret, and provision an Escrow Wallet on Base Sepolia. Use the Base Sepolia faucet to fund your 1Shot API Base Sepolia wallet so that it can execute transactions on the network.

Make a copy of the example.env file like this:

copy example.env docker-compose.env

Enter your 1Shot API key and secret into docker-compose.env for the ONESHOT_API_KEY and ONESHOT_API_SECRET variable. Also go to your organization details page and grab your Organization ID; put this in the ONESHOT_BUSINESS_ID variable

2. Get Your Ngrok Credentials

This example is setup to use ngrok so that your API endpoints are accessible to the internet from you local computer. Make a free account, and put your ngrok auth token in docker-compose.env in the NGROK_AUTHTOKEN variable.

You should also go to the Domains tab and create a free static url. Put this url (include https://) in the TUNNEL_BASE_URL variable in docker-compose.env.

3. Get Some Base Sepolia USDC

Go to the Base Sepolia USDC faucet and send some USDC to your Metamask or Coinbase wallet.

4. Fire Up the Stack

You can start the x402 demo stack with docker like this:

docker compose --env-file docker-compose.env up -d

You can see requests made to your API endpoints fromt the ngrok agent dashboard

5. Pay for a Premium API Route

Now you can simulate paying for premium API route access by signing a payload for $0.05 (your Base Sepolia USDC you got in step 3).

Go to the premium endpoint of your ngrok tunnel /premium and your browser will load an example dApp UI that will allow you to connect your wallet.
