x402 Facilitator for Cloudflare Workers

A high-performance and fast x402 payment facilitator deployed on Cloudflare's edge network, enabling USDC payments on Base using ERC-3009 TransferWithAuthorization.

Overview

This facilitator provides payment verification, settlement, and service discovery for the x402 protocol. Built on Cloudflare Workers, it offers low-latency responses with global distribution and automatic scaling.

Features

• High Performance: Achieved sub-100ms latency with Edge deployment
• Complete x402 protocol implementation (verify, settle, discovery)
• Base mainnet and Base Sepolia testnet support
• EIP-712 signature verification
• Replay attack prevention via nonce tracking
• Automatic seller registration in discovery catalog

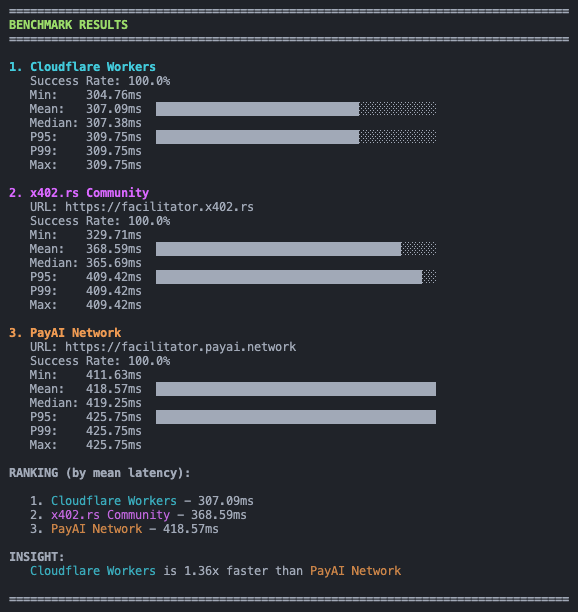

Performance Benchmark

Prerequisites

• Node.js 16+
• Cloudflare account
• Wrangler CLI
• Wallet with ETH on Base for gas (do not use your main wallet or a wallet with substantial funds)

Installation

Use it as a template with:

npm create cloudflare@latest -- --template=0xkoda/x402-facilitator

Or

Clone and install dependencies:

git clone https://github.com/0xKoda/x402-facilitator.git
cd x402-facilitator
npm install

Configuration

Create KV namespace for state management:

wrangler kv namespace create "NONCES"

Update wrangler.jsonc with your namespace IDs:

{
  "kv_namespaces": [
    {
      "binding": "NONCES",
      "id": "<production-id>"
    }
  ]
}

Add your facilitator wallet private key:

wrangler secret put SIGNER_PRIVATE_KEY

Optional: Configure custom RPC endpoints in wrangler.jsonc:

{
  "vars": {
    "RPC_URL_BASE": "https://your-base-rpc.com",
    "RPC_URL_BASE_SEPOLIA": "https://your-sepolia-rpc.com"
  }
}

Deployment

Deploy to Cloudflare Workers:

wrangler deploy

Your facilitator URL: https://<worker-name>.<subdomain>.workers.dev

API Reference

GET /

Health check and capabilities endpoint.

Response:

{
  "name": "x402 Facilitator",
  "version": "1.0.0",
  "status": "healthy",
  "endpoints": {
    "verify": "/verify",
    "settle": "/settle",
    "discovery": "/discovery/resources"
  }
}

POST /verify

Validates payment authorization without on-chain settlement.

Request:

{
  "x402Version": 1,
  "paymentPayload": { ... },
  "paymentRequirements": { ... }
}

Response:

{
  "isValid": true,
  "payer": "0x..."
}

POST /settle

Executes on-chain payment settlement.

Request:

{
  "x402Version": 1,
  "paymentPayload": { ... },
  "paymentRequirements": { ... }
}

Response:

{
  "success": true,
  "transaction": "0x...",
  "network": "base",
  "payer": "0x..."
}

GET /discovery/resources

Lists all registered x402-compatible services.

Query parameters:

• limit: Maximum results (default: 100, max: 1000)
• offset: Pagination offset (default: 0)

Response:

{
  "x402Version": 1,
  "items": [
    {
      "resource": "https://api.example.com/endpoint",
      "type": "http",
      "accepts": [...],
      "lastUpdated": "2025-01-28T00:00:00.000Z"
    }
  ],
  "pagination": {
    "limit": 100,
    "offset": 0,
    "total": 42
  }
}

GET /list

Alias for /discovery/resources.

Discovery System

Sellers are automatically registered when their endpoints are used. Discovery catalog features:

• Auto-registration on first payment verification
• 7-day TTL for inactive services
• Debounced updates (1-hour minimum between updates)
• No manual registration required

Gas Requirements

The facilitator wallet requires ETH on Base for transaction gas:

• Base Sepolia: ~0.00001 ETH per settlement
• Base Mainnet: ~0.00002 ETH per settlement

Obtain testnet ETH: Coinbase Faucet or Base Sepolia Faucet

Security

• Private keys stored in Cloudflare Workers secrets
• Nonce-based replay attack prevention
• EIP-712 signature verification
• Authorization parameter validation
• Automatic nonce expiration (24 hours for pending, 7 days for confirmed)

Monitoring

Check facilitator health:

curl https://your-facilitator.workers.dev/

View discovery catalog:

curl https://your-facilitator.workers.dev/discovery/resources

Support

• x402 Protocol: https://x402.org
• Cloudflare Workers: https://developers.cloudflare.com/workers

Warning:

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,

You are solely responsible for:

• Securing your private keys
• Any loss of funds
• Understanding the code before using it
• Complying with applicable laws and regulations

License

MIT
